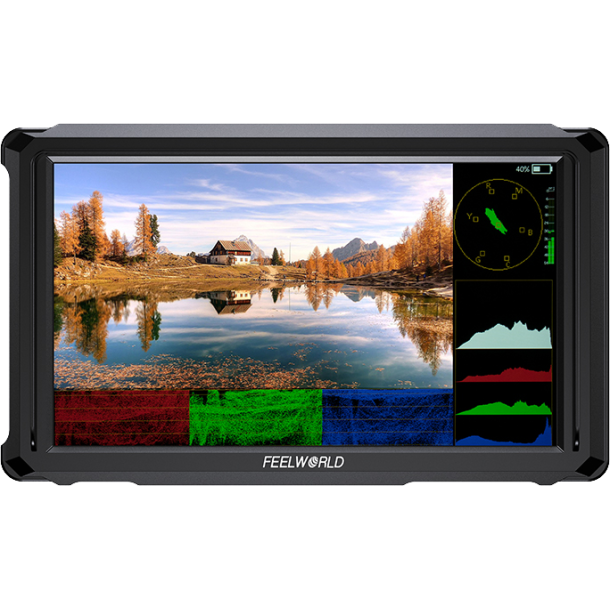

Feelworld FW568 PRO is a moderate size, ultra light weight and high brigthness monitor.
Up to 4K@60Hz HDMI transmission rate and a series of camera auxiliary functions. It is a monitor that can meet your creative needs anytime and anywhere.
6-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
1200Nit, Daylight Viewable
High brightness 1200nit is viewable in almost every kind of light.Indoors, outdoors or anywhere you need.
Lightweight Design, Ideal Partner for Gimbal
The weight of FW568 PRO only 204g, this lightweight design make it ideal for work with gimbal for moving shooting.
Intuitive Button Operation
FW568 PRO provides multiple intuitive buttons,you can control the menu easily.
Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
9:16 Vertical Screen Marker
FW568 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
Menu User Switch
FW568 PRO provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.
Full Range of Auxiliary Functions
Such as Focus Assist, Check Field, Over Exposure, False Color. Anamorphic and Pixel to Pixel.
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
3D-LUT is a table for quickly looking up and output specific color data.
By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32).
Insert the USB flash driver to the standard accessory Type-C to USB adapter, then connect with Type-C interface of FW568 PRO.
HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment.
Built-in HLG1, HLG2, HLG3 three types.
4K HDMI Input and Output，High Speed Transmission
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
DC 8.4V OUT, Power Your DSLR or Mirrorless Camera
FW568 PRO provides auxiliary DC 8.4V power out (suitable DC 5.52.1mm power plug), allowing shooters to power their cameras.
With a battery adapter cable (Optional), the FW568 PRO extends camera run-time, while providing a more usable display.
Multiple Power Supply,Long-lasting Power for Shooting
You can connect to DC power input to get continuous power （suitable for use 1.5A power adapter,DC 5.52.1mm power plug) or use the standard NP-F battery plate to install NP-F series battery for mobile application. Install one F750 battery (4400mah) last for about 3 hours.
The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank (suggest 5V/3A).
Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
Mini Hot Shoe Mount Adapter & Sun Hood included
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
In the box;
1× Monitor
1× HDMI Cable
1× Micro HDMI Cable
1× Sunshade
1× Mini Hot Shoe Mount+Hex Wrench
1× USB-A to USB-C Adapter
1× Cable Management Tie
1× Manual
