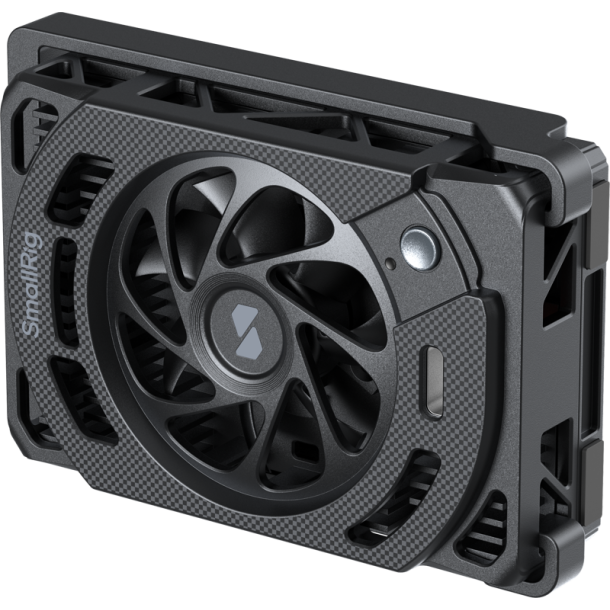

SmallRig 5875 Cooling Fan for Panasonic LUMIX S1 II / S1 IIE / S1R II
Its advanced cooling system combines a 7000 RPM high-speed fan with a TEC (Thermoelectric Cooler) chip for superior heat dissipation, effectively preventing thermal shutdown.
The fan offers two speed settings (high and low) to accommodate various shooting scenarios.
Its innovative, tool-free snap-on mount allows for swift installation or removal, ensuring effortless operation and unimpeded access to the camera's LCD screen.
For extended power and continuous cooling, the unit is compatible with SmallRig V-Mount battery mount plate kits and V-Mount batteries.
Technical Data:
- Operating Voltage: 4 - 10.8V
- Operating Current: 1 - 2A
- Cooling Power: 5 - 18W
- Operating Temperature: 0 to 45℃
- Noise Level: Normal Mode: < 40 dB
- Boost Mode: < 50 dB
- Fan Speed: Normal Mode: 4500RPM
- Boost Mode: 7000RPM
- Product Dimensions: 85.2 x 54.4 x 21.8mm
- Product Weight: 103.5g
Note:
After installing this product, the camera's LCD screen cannot be retracted. Please remove the cooling fan before retracting the LCD screen.
This product does not include a built-in battery and must be connected to an external power source to operate.
In ambient temperatures of 40°C or higher, the cooler's effect on lowering the host device's temperature may be limited.
When shooting in a quiet environment, the microphone may pick up fan noises. Before use, monitor the audio through the camera's headphone jack or a similar monitoring interface.
Compatibility:
- Panasonic LUMIX S1 II / S1 IIE / S1R II
- Compatible with the following Sony cameras when the mounting bracket is removed:
- Sony ZV-E1 / ZV-E10 II / ZV-E10 / ZV-1 / ZV-1F / Alpha 7 IV / Alpha 7S III / Alpha 7C / Alpha 7C II / Alpha 7CR / Alpha 6700 / FX3 / FX30
Packaging includes:
- Cooling Fan
- Mounting Bracket
- USB-C Cable
- Operating Instruction
