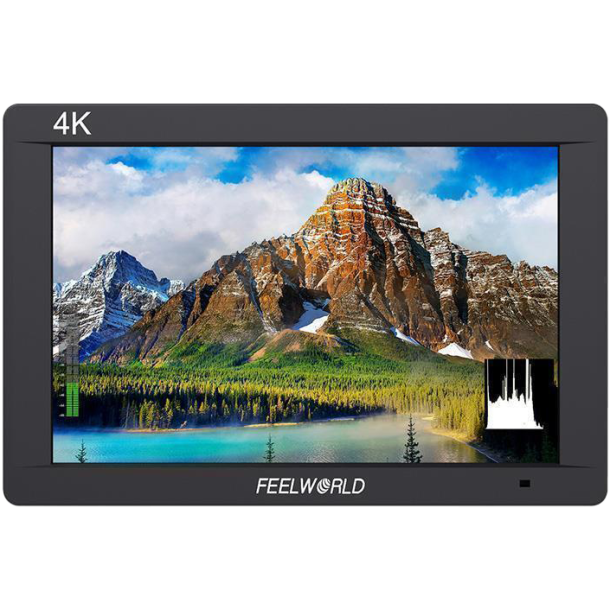

FEELWORLD FW703 4K monitor features "gold size" 7-inch full HD large screen, resolution 1920X1200, pixel density up to 323PPI. The outstanding image quality that allows you to achieve your "VISION".
Precise Color to fuel your creative flow
Richer, Brighter, Most Colorful
IPS Wider View Angle 160°
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FW703 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.
True Color · Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 22mm thickness, 320g lightweight, the FW703 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
Enjoy Efficiency Operation
Easy operate button design, allowing you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, can fast access to the functions you needs, focus assist, false color, exposure, embedded audio etc.
Professional Monitoring
Broadcast quality 3G-SDI, 4K HDMI monitoring，use pro or consumer cameras
The compact design of the FW703 includes 3G-SDI and 4K HDMI input/ output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker. Its SDI Input supports all SD, HD and SDI formats up to 1080p 60Hz and HDMI input supports formats up to 4K 2160p 30Hz, perfect support for almost all signal.
3G-SDI and 4K HDMI Loop-out
The FW703 has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
- Multiple Installations
Standard 1/4"-20 Thread Socket
FEELWORLD FW703 is equipped with standard 1/4 hole (bottom), easy to install DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane, combined with image flip function, convenient for field shooting.
Standard Hot Shoe Mount 360° Rotation
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.
Collapsible Sunshade
For easier viewing in bright environments. FW703 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.
Flexible Battery System
The FW703 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).
**Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
**
Key Features:
- 1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m²
4. 160°wide viewing angles IPS Panel
5. Ultra thin design 22mm thickness
6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Embedded Audio
12. Scan Mode (Under Scan, Over Scan)
13. Zoom (4x,9x,16x)
14. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
15. Pixel to Pixel
16. Center Marker
17. Safe Area (80%,85%,90%,93%,96%,2.35:1)
18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
19. Marker Color (Red,Green,Blue,White,Black）
20. Check Field (Red/Green/Blue/Mono)
21. Image Flip (H, V, H/V)
22. Image Freeze
23. Zoom All (0~100 adjustable)
24. U/D & L/R Zoom (0~100 adjustable)
25. Color Temperature Adjustment
In The Box
- 1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual
