Small Size, Big Advantage

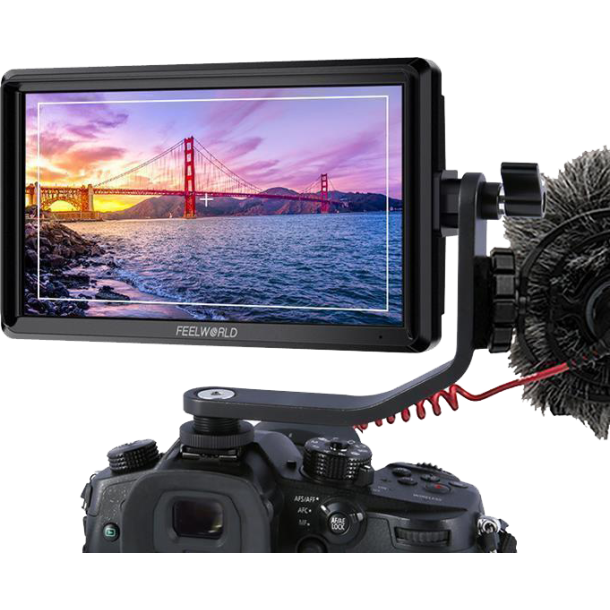

The FW568 V3 is small, lightweight and has great image quality. The small size is extremely useful when filming in tight spaces and where weight is important such as with gimbals. The FW568 V3 is the perfect monitor for those who need an easy-to-use lightweight on-camera monitor such as gimbal operators, or shooters that are always on the go.
Intuitive Controls and Menus
The menu controls are intuitive and easy to use. At the top of the monitor, there are three custom function buttons that you can set as common functions; press “<” directly to decrease the volume; press “>” directly to increase the volume. The monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.
6” LCD, 1920x1080 Resolution
High resolution, brighter full of colors
The FW568 V3 provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1080 high resolution and 16:9 display, 450cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image, full-screen display uniform, no difference, no trailing. Its size, weight and resolution make it an attractive option for DSLR shooters looking to attach it straight to the camera.
Large Viewing Angles for All-round Visibility
IPS monitor, gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And he wide viewing angle makes it easy for multiple crew members to watch at the same time.
4K HDMI Input & Loop Output
The FW568 V3 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
HDMI Output Application
Connect to Wireless Transmitter
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
**Use Rec.709 color standard
**FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). FW568 V3 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C to USB connector . Slot and instantly select between them, maintaining creative intent, always.
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use FW568 V3's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FW568 V3 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Features:
1. High Resolution: Full HD 1920x1080
2. High Contrast: 1000:1
3. High Brightness: 450cd/m²
4. 160° wide viewing angles IPS Panel
5. Provides auxiliary power out; allowing shooters to power their cameras
6. Custom 3D LUT import (up to 32)
7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)
10. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
11. False Colors
12. Zebra Exposure
13. Nine Grid
14. Scan Mode (Under Scan, Over Scan)
15. Zoom (4x,9x,16x)
16. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
17. Pixel to Pixel
18. Center Marker
19. Safe Area (80%,85%,90%,93%,96%,2.35:1)
20. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
21. Marker Color (Red,Green,Blue,White,Black）
22. Check Field (Red/Green/Blue/Mono)
23. Image Flip (H, V, H/V)
24. Image Freeze
25. Zoom All (0~500 adjustable)
26. U/D & L/R Zoom (0~500 adjustable)
27. Color Temperature Adjustment
In The Box:
- 1× Micro HDMI Cable
- 1× Sunshade
- 1× Tilt Arm
- 1× Type-C to USB adapter
- 1× Manual
